NF90
(Click to open datasheet)
| - Dimensions: 32.5 X 27.6 X 20.5
- Contact rating: 32A
- Contact Configuration: 1A, 1C
- Coil Voltage: 5, 6, 9, 12, 24, 48 VDC
- Coil Power: 900mW
- Terminals: THT
|  E352916 |
NF32
(Click to open datasheet) | - Dimensions: 21.3 x 16.2 x 20.9
- Contact rating: 32A
- Contact Configuration: 1A
- Coil Voltage: 9, 12, 24 VDC
- Coil Power: 2800mW
- Terminals: THT
| E352916 |

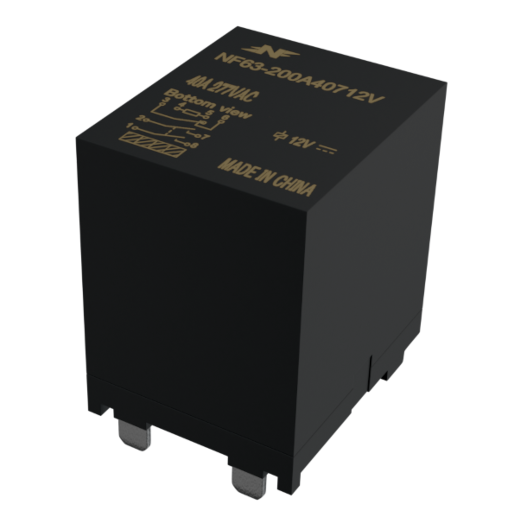

NF63
(Click to open datasheet) | - Dimensions: 36 x 30 x 40 [mm]
- Contact rating: 40A
- Contact Arrangement: 2 form A (2NO) + aux. Contact
- Coil Voltage: 3, 6, 9, 12, 24, 48 VDC
- Coil Power: 1880mW
- Gap > 3.5 mm (output); Gap > 0.7 mm (input)
- Low coil holding voltage to save power
- UL insulation class F
| |
NF65L
(Click to open datasheet) | - Dimensions: 39 x 15 x 30.2 [mm]
- Single Coil Latching 1.5W, Dual Coil Latching 3W+3W
- Contact rating: 40, 50, 60A
- Contact Arrangement: 1 form A (NO), 1 form B (NC) or 1 form C (CO)
- Coil Voltage: 9, 12, 24, 48 VDC
- Dielectric strength 4kV between coil and contact
| |
NF66L
(Click to open datasheet) | - Dimensions: 38 x 37 x 30 [mm]
- Single Coil Latching 1, 1.5W, Dual Coil Latching 2W+2W, 3W+3W
- Contact rating: 60, 80, 6ยด90A
- Contact Arrangement: 1 form A (NO), 1 form B (NC)
- Coil Voltage: 9, 12, 24, 48 VDC
- Dielectric strength 4kV between coil and contact
- Coil wire insulation class F
- IEC62055-31 UC2 Compliance (80A and 90A)
- Customized Teminal like Shunt and Brush Wire
| |
